ท่านใดมีรายละเอียดเมนบอร์ดserver DELL 750และ DELL1425 บ้างครับ

[ช่างเล็ก(LSV)]

รบกวนหน่อยนะครับ

[ช้าง ณ.ปากพนัง -LSV team]

Dell PowerEdge 750 Server
FEATURES DESCRIPTION
Processors Single Intel® Pentium® 4 processor (up to 3.4GHz/800MHz)
or single Intel Celeron® processor (2.4GHz)
Cache Up to 1MB L2 cache for Pentium 4; 128K L2 cache for Celeron
Chipset Intel 7210
Support for dual channel memory
Front Side Bus 800MHz P4, 533MHz Celeron
I/O Channels 4 total: 1 x 64-bit/66MHz PCI-X slot, 1 x 32-bit/33MHz PCI slot,
dual embedded Gigabit NICs
Starting/Maximum Memory 256MB/4GB DDR-400MHz SDRAM
Availability ECC memory; Optional SATA and SCSI RAID solutions, Tool-less chassis
Internal Storage 2 x 1" SATA or SCSI drives (40/80/120/250GB SATA @7200RPM
or 36/73/146 @10K RPM 36/73GB @15K U320 SCSI)
Internal Storage Performance 10K/15K RPM SCSI drives; 7200 RPM SATA drives
External Hard Drive Storage PowerVault™ 22XS
Embedded SCSI N/A
RAID support Optional CERC SATA, PERC 4/SC, PERC 4/DC adapters
Tape Support Internal: N/A
External: PowerVault 112T, PowerVault 114T and PowerVault 122T
Video Embedded ATI Rage XL with 8MB memory
Networking Dual embedded Intel Gigabit NIC, Intel PRO/100S; Intel PRO/1000 MT; Intel
PRO/ 1000MT Dual Port
High Availability Clustering No
Chassis Tool-less access
Power Supply 1 x 280W non-redundant
Remote Management DRAC III/XT (optional)
Systems Management OpenManage support
Rack Support Stationary (non-sliding) tool-less and easy to mount Rapid Rails. Support for
4-post (Dell rack), 2-post center mount, and 2-post flush mount, and 3rd party
VersaRails. Provides Velcro cable management tie straps for cable management
(no CMA).

[ช้าง ณ.ปากพนัง -LSV team]

Dell PowerEdge SC 1425 Server
1 For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.
2 This term does not connote an actual operating speed of 1GB/sec. For high speed transmission, connection to a Gigabit Ethernet server and
network infrastructure is required.
Dell is not responsible for errors in typography or photography. Dell, the Dell logo and PowerEdge are trademarks of Dell Inc. Intel is a registered
trademark and Xeon is a trademark of Intel Corporation. Linux is a registered trademark of Linus Torvalds. Microsoft and Windows are registered
trademarks of Microsoft Corporation. PCI-X is a registered trademark of PCI-SIG. Radeon is a registered trademark of ATI Technologies Inc. Red Hat is
a registered trademark of Red Hat, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks
and names or their products. Dell disclaims proprietary interest in the marks and names of others. © Copyright 2005 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the express written permission of Dell Inc. is strictly forbidden. For more information contact Dell.
December 2005.
FEATURES Dell™ PowerEdge™ SC1425 Server
Processors Up to two 64-bit Intel® Xeon™ processors at up to 3.8GHz
Form factor 1U rack-dense chassis
Front side bus 800MHz
Cache Up to 2MB L2
Chipset Intel E7520
Memory 256MB/16GB ECC DDR-2 400 SDRAM
I/O channels One PCI-X® slot (64-bit/133MHz)
Drive controller Optional 39320 SCSI adapter; single channel SATA; embedded SATA
controller
RAID controller CERC SATA 2s, Ultra320 S/W
Drive bays 2 x 1" SATA or SCSI drives
Maximum internal storage Up to 500GB SATA or 600GB1 SCSI
Hard drives1 73GB, 146GB and 300GB (10,000 rpm) Ultra320 SCSI
36GB (15,000 rpm) Ultra320 SCSI
40GB, 80GB, 160GB and 250GB (7,200 rpm) SATA
Internal storage 10K/15K RPM SCSI drives; 7,200 RPM SATA drives
Network interface card Dual embedded Intel Gigabit2 NICs with failover support; single
and dual port Intel PRO/1000 MT adapters (copper)
Power supply 1 x 450W non-redundant
Availability ECC memory; RAID options; tool-less chassis; NIC teaming
Video Embedded ATI Radeon® 7000-M with 16MB SDRAM
Remote management IPMI 1.5 compliant Baseboard Management Controller
Systems management Dell Server Assistant for PowerEdge SC Servers
Rack support Dell Static Rails
Operating systems Microsoft® Windows Server™ 2003, Standard x64 Edition; Microsoft
Windows Server 2003, Web Edition; Microsoft Windows Server 2003,
Standard Edition; Red Hat® Enterprise Linux® v3 (Enterprise Server
EM64T and Workstation Server EM64T)

[ช่างเล็ก(LSV)]

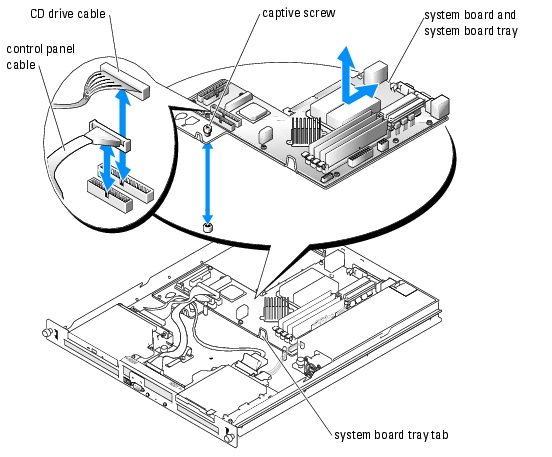

มีภาพเมนบอร์ดของ 750 อย่างละเอียดไหมครับ

[ช้าง ณ.ปากพนัง -LSV team]

แหล่งข้อมูลอ้างอิงสำหรับ PowerEdge™ 750 ครับ

Dell PowerEdge 750 Systems Installation and Troubleshooting Guide

Dell PowerEdge 750 Systems User's Guide

Dell PowerEdge 750 Systems Service Manual
